omg omg-ocup-300 practice test

What determines which value an object flow edge chooses to move from the source? (Choose two)

• A. transformation
• B. upper bound
• C. ordering
• D. effect
• E. weight
• F. selection

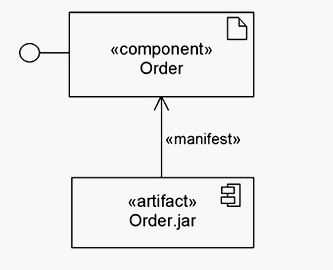

What is wrong in this deployment diagram exhibit? (Choose two)

• A. Icons are swapped.
• B. Interface on Order should point up.
• C. <<manifest>> arrow should have a dashed line.
• D. <<manifest>> arrowhead should be hollow.
• E. <<manifest>> arrowhead should be solid.

What does the composite structure notation show in the exhibit?

• A. p is a port on a part of composite C, which is not shown.
• B. p is a port providing a system service.
• C. p is a hidden port.
• D. p is a behavior port.

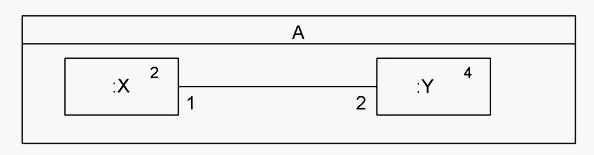

In the exhibit, how many links are created by default when an instance of A is created?

• A. two
• B. four
• C. none
• D. eight

A ReplyAction always follows what action?

• A. AcceptCallAction
• B. AcceptEventAction
• C. ReadExtentAction
• D. CreateLinkObjectAction
• E. StartOwnedBehaviorAction

When a component is deleted, what happens to objects in a component's namespace?

• A. objects are deleted
• B. only those objects that participate in shared aggregations are retained
• C. objects continue to exist
• D. contents of the component's namespace are promoted to its superclass

In planning to describe (in UML) a middleware software package, a company recently acquired,
which class is most likely created to describe the package itself?

• A. Manifestation
• B. Device
• C. DeploymentSpecification
• D. ExecutionEnvironment
• E. Artifact

What are the ways that the UML metamodel reuses the InfrastructureLibrary package? (Choose two)

• A. specializes meta-metaclasses that are defined in the InfrastructureLibrary
• B. stereotypes meta-metaclasses that are defined in the InfrastructureLibrary
• C. exports and generalizes metaclasses in the InfrastructureLibrary
• D. imports and specializes metaclasses in the InfrastructureLibrary
• E. is instantiated from meta-metaclasses that are defined in the InfrastructureLibrary

What does the composite structure notation show in the exhibit?

• A. p is a hidden port.
• B. p is a behavior port.
• C. p is a port on a part of composite C, which is not shown.
• D. p is a port providing a system service.

Which statements are true about OCL? (Choose three)

• A. OCL is a query language.
• B. OCL is a programming and procedural language.
• C. OCL is a typed language.
• D. OCL is a procedural language.
• E. OCL is a specification language.
• F. OCL is a programming language.
