nokia 4a0-n01 practice test

What function is NOT supported on the Nuage 7850 VSG?

• A. Hardware VXLAN/VLAN gateway
• B. Cloud orchestration
• C. Top of Rack switch/Leaf router
• D. VSC functionality

If we compare a Nuage Virtual Service Node to a physical service router, which module is VSC
mapped to?

• A. Switch fabric
• B. Line card
• C. CPU module
• D. Internal clock

What statement is FALSE regarding the relationship between a zone and a subnet within a domain?

• A. Each zone can have multiple subnets.
• B. Each subnet can belong to multiple zones.
• C. A QoS policy defined at the subnet level takes precedence over a QoS policy defined at the zone level.
• D. A security policy applied to the zone impacts all subnets associated to that zone.

Which VSD component provides a south-bound interface for communication with the VSC?

• A. VSD Mediator
• B. Statistics Engine
• C. Policy Management Engine
• D. RESTful API

What does VSD stand for?

• A. Virtualized Services Description
• B. Virtualized Services Definition
• C. Virtualized Services Domain
• D. Virtualized Services Directory

What statement regarding VSD user management is TRUE?

• A. We can create CMS user groups for each enterprise.
• B. Each enterprise user belongs to only one user group.
• C. Open LDAP and Active Directory can be integrated into VSD.
• D. LDAP integration is configured at the VSD global level, and it is not configurable enterprise.

What statement regarding the VRS-G is FALSE?

• A. The VRS-G is the software VXLAN/VLAN gateway of the Nuage Networks VCS solution.
• B. The VRS-G is deployed on a hypervisor, following the same deployment requirements as a regular VRS.
• C. Virtual machines created on the hypervisor are attached to access ports on VRS-G.
• D. The network ports on VRS-G point towards the Nuage Networks overlay VXLAN network.

Which protocol is used for VSC federation?

• A. BGP VPN-IPv4
• B. BGP EVPN
• C. Openflow
• D. XMPP

What is NOT a function of VRS?

• A. VXLAN tunneling
• B. Detecting VM events
• C. DHCP and ARP proxy
• D. Libvirtd

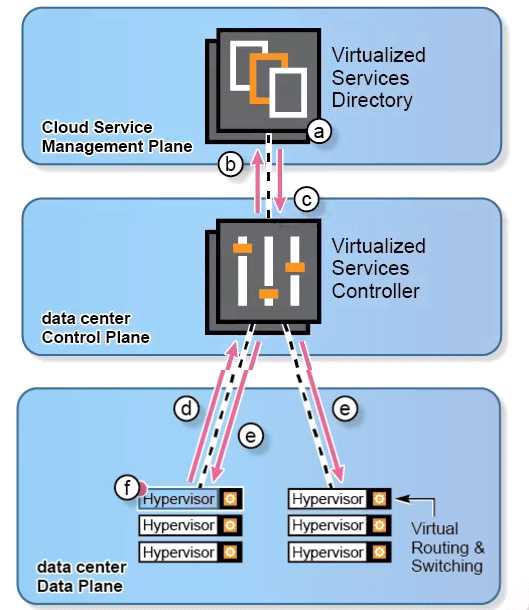

Refer to the diagram.

What is the correct sequence of events for a VM to be instantiated, and for its required network
connectivity to be created with the Nuage VCS solution?
a. Network domain and policy templates are defined on VSD. b.
VSC queries VSD on network service and policies. c. VSD provides VSC with network service and
policies. d. VRS agent informs VSC of the new VM placement. e. VSC deploys policy to applicable VRS
agents. f. VM instantiated on the hypervisor.

• A. a->b->c->d->e->f
• B. a->b->c->f->d->-e
• C. a->f->d->b->c->-e
• D. f->d->b->a>c->-e
