nokia 4a0-107 practice test

Which of the following BEST describes a SAP when regarding QoS?

• A. A point in the network where EXP bits can be mapped to one of eight predefined FCs, each one with its own queue.
• B. A logical point in a service tunnel where all of customer traffic is aggregated.
• C. A point at which the initial classification of customer traffic occurs.
• D. A point in the network where QoS parameters are discarded in favor of lower-level hardware queuing functions, such as LLI (Link Layer Interleave).
• E. A point in the network where traffic flows from multiple different services are queued together, based on forwarding class.

Individual application streams are considered microflows, whereas __________ are considered
macroflows.

• A. SAPs
• B. SDPs
• C. Services
• D. Queues
• E. Schedulers
• F. Forwarding classes

What is the maximum number of SAP-ingress policies that can be applied on a SAP?

• A. 1
• B. 2
• C. 3
• D. 4
• E. 5
• F. 8

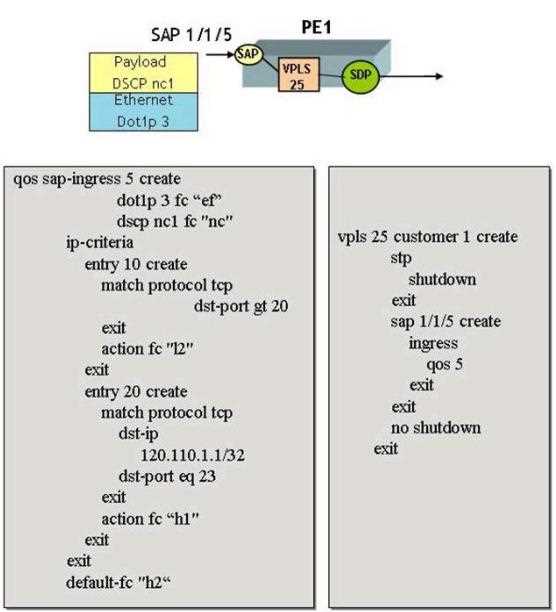

Click the exhibit button below.

Based on the configuration shown below, name the forwarding class to be associated with a TCP
packet encapsulated inside an Ethernet frame that arrives on SAP 1/1/5 with the following
characteristics:
Destination IP address = 120.110.1.1
TCP port number = 23
DSCP value = nc1
Dot1pvalue = 3

• A. H2
• B. NC
• C. L2
• D. EF
• E. H1
• F. BE

Which of the following are possible criteria for classifying packets at the network port ingress on the
Nokia 7750 SR? (Choose three)

• A. The EXP bits in the MPLS header.
• B. The packet's source and destination IP addresses.
• C. The packet's DSCP bits.
• D. The dot1p bits in the frame header.
• E. The ID of an SDP that is transporting the packet.

A default network policy is applied to all router interfaces associated with network ports.

• A. TRUE
• B. FALSE

Which of the following are NOT ingress matching criteria for a network policy? (Choose two)

• A. TCP port numbers
• B. LSP EXP
• C. DSCP
• D. Source and destination IP addresses
• E. Dot1p priority

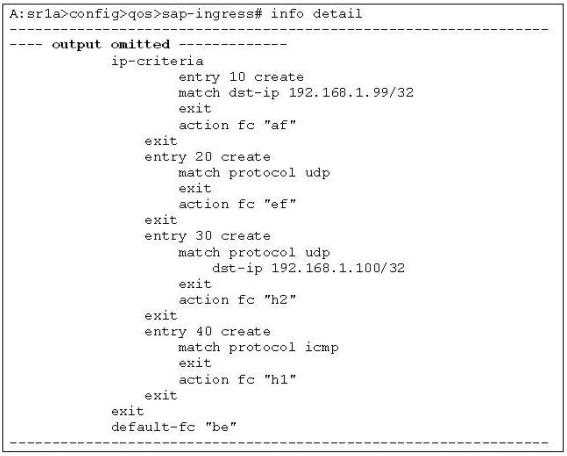

Click the exhibit button below. A partial SAP-ingress policy configuration is shown below. A UDP
video stream is sent to a PC with IP address 192.168.1.100. Given the SAP-ingress policy, to which
forwarding class is the traffic matched?

• A. AF
• B. EF
• C. H2
• D. H1
• E. BE

On an Nokia IOM 3, how is buffer memory allocated per forwarding complex?

• A. 512 MB ingress, 512 MB egress
• B. 256 MB ingress, 256 MB egress
• C. 1 GB dynamically allocated between ingress and egress.
• D. 768 MB dynamically allocated between ingress and egress.
• E. 768 MB, with a minimum of 256 MB ingress and egress, and an additional 256 MB dynamically allocated.

WRED can be used to help avoid TCP slow-start synch problems.

• A. TRUE
• B. FALSE
