nokia 4a0-105 practice test

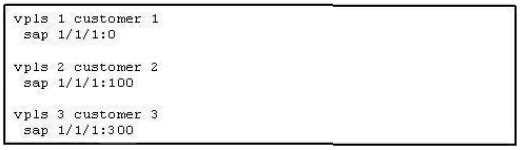

Click on the exhibit below.

The following VPLS services and SAPs have been configured. Which of the following statements is
true?

• A. All untagged frames will be dropped.
• B. The source MAC address of a frame with a top tag of 200 and bottom tag of 300 will be populated in VPLS 3.
• C. All frames with more than one tag will be dropped.
• D. The source MAC address of a frame with a single tag of 500 will be populated in VPLS 1.
• E. The source MAC address of a frame with a top tag of 100 will be populated in VPLS 2.

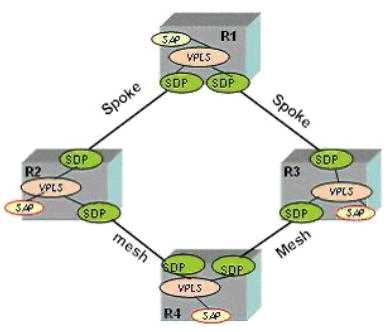

Click on the exhibit below.

If the SDP between R2 and R1 goes down, what devices will be reachable from R2 through the VPLS?

• A. Only R4 will be reachable through the VPLS. B All devices will be reachable through the VPLS.
• C. R4 and R3 will remain reachable.
• D. No devices will be reachable.

What is the default service-mtu for a VPLS service?

• A. 1500
• B. 1514
• C. 1518
• D. It depends on the access port MTU.
• E. It depends on the network port MTU.

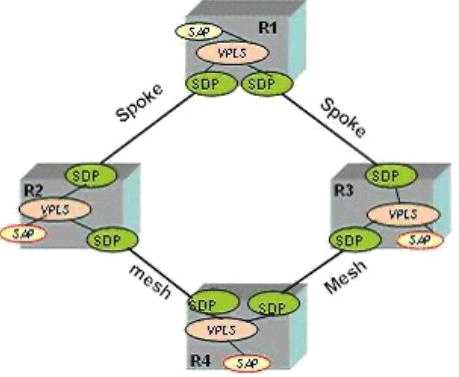

Click on the exhibit below.

The VPLS service MTU on R2 is 1514 bytes. What must the service MTU be on all other routers
participating in the VPLS?

• A. The service MTU must be equal to or smaller than 1514 bytes.
• B. The service MTU must be 1514 bytes.
• C. The service MTU must be equal to or greater than 1514 bytes.
• D. The service MTU can be any value.

What is the default fdb size for a VPLS service?

• A. 100
• B. 1
• C. 25
• D. 250

If the command "disable-learning" has been added at the VPLS level, then MAC entries which have
already been learned will not be aged.

• A. TRUE
• B. FALSE

Which OAM tool can be used to dynamically learn the MAC address of a CE device connected to a
SAP within a VPLS service?

• A. oam mac-populate
• B. oam mac-ping
• C. oam mac-trace
• D. oam svc-ping
• E. oam cpe-ping

During the process of troubleshooting a VPLS problem the "oam mac-purge" command with
"register" option was used to purge a MAC address from the FDB. Which of the following statements
is true?

• A. Relearning of the MAC address that was purged can only be done once customer traffic resumes.
• B. Relearning of the MAC address that was purged can only be done with the "oam mac-populate" command.
• C. Customer traffic destined to the MAC address that was purged will be dropped until the MAC address is relearned with the "oam mac-populate" command.
• D. Relearning of the MAC address that was purged can only be done with the "oam mac-register" command.

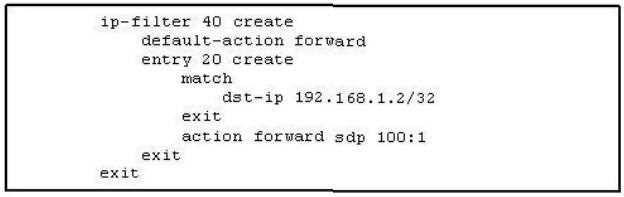

Click on the exhibit below.

The following IP filter has been configured and applied to a SAP in a non-VPLS service. Which of the
following statements is true?

• A. An error will be generated and the configuration will not be allowed.
• B. The filter entry will be ignored and traffic matching the criteria will be forwarded
• C. All traffic matching entry 20 will be dropped.
• D. Traffic matching entry 20 will be forwarded to sdp 100:1.

Which of the following statements is true?

• A. Filter Policies can only be applied on egress.
• B. An IP filter can be applied on ingress at the same time a MAC filter is applied on the egress of the SAP.
• C. Filter Policies can be based on IP, MAC, and VPI/VCI addresses.
• D. Any number of ingress and egress filter policies can be associated with a SAP.
• E. An IP filter and a MAC filter can be applied on the ingress SAP at the same time.
• F. None of the above.
