Juniper jn0-104 practice test

Which component is responsible for performing protocol updates and system management?

• A. forwarding tables
• B. Routing Engine
• C. bridging table
• D. Packet Forwarding Engine

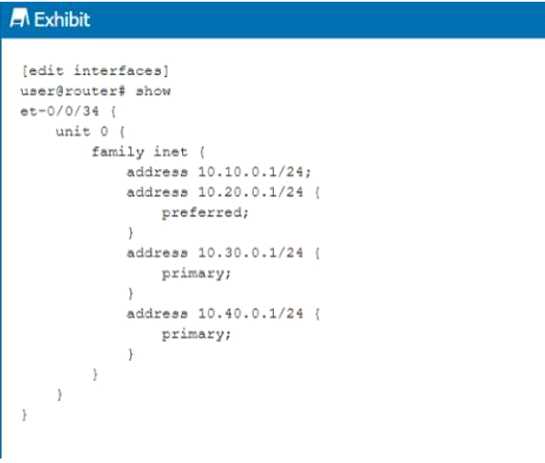

Click the Exhibit button

Referring to the exhibit, what will be the source address for packets egressing et-0/0/34.07

• A. 10.20.0.1
• B. 10.30.0.1
• C. 10.10.0.1
• D. 10.40.0.1

Which statement about the forwarding table is correct?

• A. It contains all known routes including IPv6-
• B. It is only available on the PFE
• C. It is only available on the RE
• D. It is available on both the RE and the PFE.

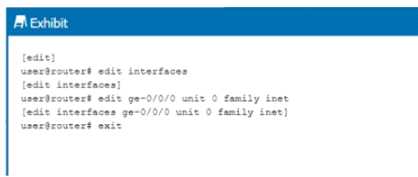

A user has entered the sequence of commands shown in the exhibit

At which level of the configuration hierarchy would the user be after typing the exit command?

• A. [edit]
• B. [edit interfaces ge-0/0/0]
• C. [edit interfaces ge-0/0/0 unit 01 ]
• D. [edit interfaces]

Which statement regarding transit traffic processing is correct?

• A. Transit traffic is processed by both the control plane and forwarding plane.
• B. Transit traffic is only processed by the control plane.
• C. Transit traffic is only processed by the forwarding plane
• D. Transit traffic is not processed by the local device.

Which two Juniper Networks products are available in virtual machine (VIM) format? (Choose two.)

• A. vSRX
• B. vIDP
• C. vPTX
• D. vMx

A user entered configuration mode and modified the candidate configuration.
In this scenario, what are two results? (Choose two.)

• A. Other users cannot enter configuration mode.
• B. Other users cannot enter configuration mode using the exclusive parameter
• C. Other users cannot log into the device.
• D. Other users cannot enter configuration mode using the private parameter.

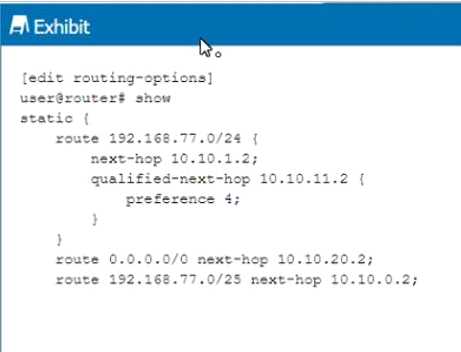

Click the Exhibit button.

Referring to the exhibit, if the router forwards traffic destined for 192.168.77.29, which next hop will
be used?

• A. 10.10.1.2
• B. 10.10.11.2
• C. 10.10.0.2
• D. 10.10.20.2

Which statement about the show chassis hardware Command is correct?

• A. The command provides a list of installed hardware components, including serial numbers and model numbers.
• B. The command provides a list of all current hardware utilization statistics and operational status
• C. The command provides 2 list of supported hardware components and their current operating status
• D. The command provides a list of supported hardware components and environmental thresholds.

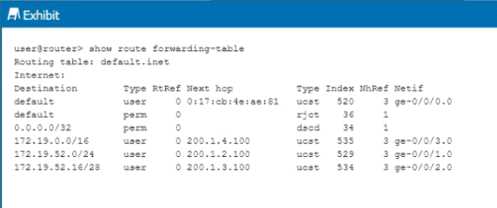

Click the Exhibit button

What is the next-hop interface for traffic destined to 172.19.52.101 as shown in the exhibit?

• A. ge-0/0/3.0
• B. ge-0/0/0.0
• C. ge-0/0/2.0
• D. ge-0/0/1.0
