Question 1

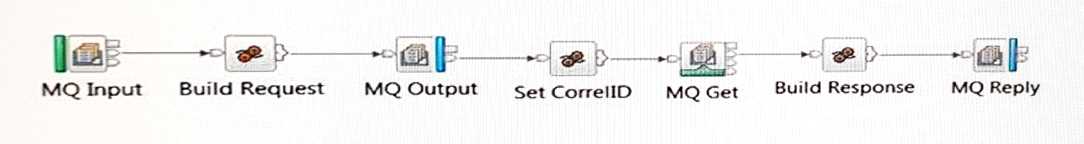

A service interacts with a backend system which replies with a message correlation. When
processing request/response messages from the backend, no messages were received by the flow.
Which may be the probable cause of failure?
- A. The transaction was set to automatic on the MQOutput Node.
- B. The developer should have used the MQInput Node instead of the MQGet Node.
- C. The Integration Node is configured in a MQ cluster for load balancing and the object descriptor is set to the ReplyToQueueManager.
- D. The backend request/reply message processing can only be accomplished by breaking up the flow into two flows.
Answer:
A
Explanation:
When you define an MQOutput node, the option that you select for the Transaction Mode property
defines whether the message is written under sync point:
If you select Yes, the message is written under sync point (that is, within a WebSphere MQ unit of
work).
If you select Automatic (the default), the message is written under sync point if the incoming input
message is marked as persistent.
If you select No, the message is not written under sync point.
Comments
Question 2
A developer plans to create two new message flows. Flow1 that uses TimeoutControl and
TimeoutNotification nodes in Controlled mode, and Flow2 that uses only the TimeoutNotification
node in Automatic mode.
The Integration Node is installed on a system without IBM MQ installed. What problems will the
developer encounter?
- A. Flow1 will not deploy successfully. Flow2 will not deploy successfully.
- B. Flow1 will not deploy successfully. Flow2 will deploy and execute successfully.
- C. Flow1 will not deploy successfully. Flow2 will deploy successfully but will produce an error when execution is attempted.
- D. Flow1 will deploy successfully but produce an error when execution is attempted. Flow2 will deploy and execute successfully.
Answer:
B
Explanation:
Information about the state of in-flight messages is held on storage queues that are controlled by
WebSphere MQ, so you must install WebSphere MQ on the same computer as your integration node
if you want to use the capabilities provided by the TimeoutControl node.
References:
https://www.ibm.com/support/knowledgecenter/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bc28150
_.htm
Comments
Question 3
While developing a REST API what node should a developer use to receive messages?
- A. MQInput Node
- B. JMSInput Node
- C. HTTPInput Node
- D. SOAPInput Node
Answer:
C
Explanation:
Each resource in the REST API has a set of operations that can be called by an HTTP client. An
operation in a REST API has a name and an HTTP method (such as GET, POST, or DELETE).
Use the HTTPInput node to receive an HTTP message from an HTTP client for processing by a
message flow.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi12
017_.htm
Comments
Question 4
An Integration Server contains a shared library with a common error handling routine. The shared
library is redeployed with an updated error handling routine with some new logging. When will the
applications that use the shared library start using the updated routine?
- A. Immediately.
- B. When the Integration Node is restarted.
- C. When the Integration Server is restarted.
- D. After each application that uses the shared library is redeployed.
Answer:
A
Explanation:
If a shared library is updated, the changes are immediately visible to all referencing applications.
If you want to deploy and manage just one copy of those common resources, use a shared library. A
shared library can be deployed directly to an integration server. Any application can reference the
resources in that deployed shared library.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bc23
066_.htm
Comments
Question 5
Which statement regarding security profiles is true?
- A. Multiple security providers cannot be created in one security profile.
- B. A security profile can be created for LDAP or a WS-Trust V1.3 STS.
- C. The command mqsichangeconfigurableservice can be used to change a security profile.
- D. If WS-Trust v1.3.STS is selected for more than one operation, the WS-Trust URL must be different and unique for each of the operations.
Answer:
B
Explanation:
You can create a security profile for use with Lightweight Directory Access Protocol (LDAP) or a WS-
Trust V1.3 compliant security token server (STS), such as Tivoli Federated Identity Manager (TFIM)
V6.2. Support is also provided for TFIM V6.1, for compatibility with previous versions of IBM
Integration Bus. You can create the security profile by using either the mqsicreateconfigurableservice
command or an editor in the IBM Integration Explorer.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ap041
70_.htm
Comments
Question 6
The format of a policy UPL is apiv1/policy/MQTTSubscribe/Test. What policy has the developer
created?
- A. MQTTSubscribe Policy 1
- B. MQTTSubscribe Policy Test
- C. MQTTSubscribe Policy apiv1
- D. MQTTSubscribe Policy policy
Answer:
B
Explanation:
The format of a policy URL is /apiv1/policy/policy type/policy name. For example,
/apiv1/policy/MQTTSubscribe/Policy1.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62
100_.htm
Comments
Question 7
A message flow is started with JMSInput node and no Message Domain is specified. The flow
received an input message of type TextMessage with no JMSType header included. What would the
default message domain be as the message is propagated out of the node?
- A. XML
- B. BLOB
- C. XMLNSC
- D. JMSStream
Answer:
B
Explanation:
The Message domain is used to parse the message. If the field is blank then the default is BLOB.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac248
20_.htm
Comments
Question 8
What are two options for creating an MQEndpoint policy? (Select 2.)
- A. Use the BAR file editor.
- B. Use Integration Bus Explorer.
- C. Use the mqsicreatepolicy command.
- D. Use the mqsiattachpolicy command.
- E. Use the Integration Bus web user interface.
Answer:
C, E
Explanation:
You can use the following tools to create, attach, and manage MQEndpoint policies:
To create a policy, use the mqsicreatepolicy command. For more information, see Creating and
importing policies.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62
102_.htm
Comments
Question 9
What can the DatabaseInput node be configured to do?
- A. Insert data in a database.
- B. Update data in a database.
- C. Update the local environment tree.
- D. Retrieve data from a database.
Answer:
D
Explanation:
Use the DatabaseInput node to detect events recorded in a database, and to retrieve the data
affected by those events.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/bc340
41_.htm
Comments
Question 10
Which statement about the .NETCompute Node is true?
- A. The exception is propagated through a predefined output terminal.
- B. .NETCompute node does not support dynamic terminal. All terminals are predefined.
- C. The message assembly contains four trees to represent the message, the environment, the local environment and the exception list.
- D. Only when the message needs to be transformed through the .NETCompute node, an Evaluate method is needed. In the case of the message pass-through, there is no need for an Evaluate method.
Answer:
A
Explanation:
The Failure Terminal is the output terminal to which the input message is routed if an unhandled
exception occurs during the computation.
Comments
Page 1 out of 11
Viewing questions 1-10 out of 120
