HP hpe6-a71 practice test

A company opens a new branch office and a RAP is used to connect to a corporate office Aruba
Mobility Controller (MC). The company needs to provide connectivity to the office across the street.
There is an AP across the street. However, there is no wired connectivity between the buildings.
Which actions can the administrator select to provide the required connectivity? (Choose two.)

• A. Provision all Aps at the branch office as Mesh Points.
• B. Provision all Aps at the branch offices as Mash Portals.
• C. Implement one of the Aps as a Mesh Point.
• D. Provision the RAP as a Mesh Portal.
• E. Implement two mesh clusters.

A customer uses an SIP application that is not supported by Aruba United Communications and
Collaboration (UCC). Which voice deployment mode should the administrator implement on Aruba
Mobility Controllers (MCs) to support this application?

• A. Heuristic mode
• B. SDN-API mode
• C. QoS-mode
• D. WMM-only mode

A company has a wireless network that contains a cluster of four Aruba 7030 Mobility Controllers
(MC) managed by a Mobility Master (MM) located in the data center. The company has Aps deployed
that are nearing the capacity of the cluster. The administrator wants to increase AP capacity.
How can the administrator solve the problem?

• A. Add a new controller to the Mobility Master.
• B. Add a Virtual Mobility Controller to the existing cluster.
• C. Add a 7030 controller to the existing cluster.
• D. Add a 7220 controller to the existing cluster.

An Administrator supports a group of employees that connect to the corporate office using the VIA
client. An Aruba Mobility Controller (MC), behind a corporate firewall, terminates the user’s VPN
sessions. The VPN sessions fail to establish because of the existing firewall rules.
Which connections must the administrator allow on the firewall? (Choose three.)

• A. UDP 8202
• B. UDP 4500
• C. UDP 8211
• D. TCP 4443
• E. TCP 443
• F. UDP 500

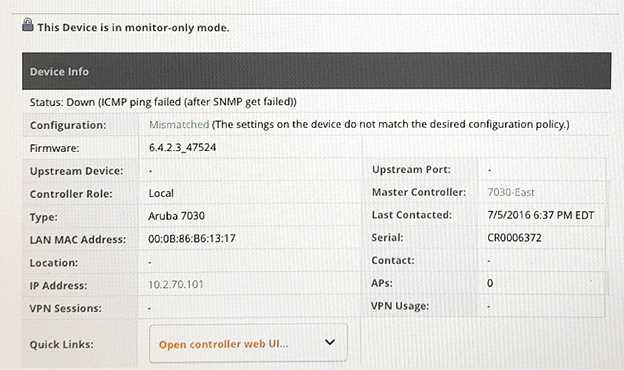

Refer to the exhibit.

Under which AirWave Management Platform (AMP) section should an administrator navigate to see
the connection status between the AMP and managed device shown in the exhibit?

• A. Folders
• B. Aps/Devices
• C. VisualRF
• D. Device Setup

A group of users on the same floor of a campus residence experience connectivity problems
continuously throughout the morning. The administrator suspects that it is a L1 problem with
physical interference.
What can the administrator do to find the cause of this problem?

• A. Access a controller’s spectrum analysis data directly from AirWave with Quick Links.
• B. Access RAPIDS data from AirWave’s RAPIDS section.
• C. Access RAPIDS data from AirWave’s dashboards, under Home.
• D. Access a controller’s spectrum analysis data from AirWave’s dashboards, under Home.

An administrator at Campus A manages Aruba Mobility Controllers (MCs). The administrator defines
a server group that includes a local ClearPass server and a remote Microsoft RADIUS server. The
ClearPass server has the credentials for users at Campus A and the Microsoft RADIUS server has the
credentials for users at Campus B. Users at Campus A successfully authenticate and connect to the
Campus A wireless network. However, when users from Campus B visit Campus A they fail
authentication.
What can the administrator do to solve this problem?

• A. Enable FastConnect on the Campus A Mobility Controllers.
• B. Enable machine authentication on the Mobility Controllers.
• C. Enable EAP-TTLS with EAP Termination on the Mobility Controllers.
• D. Enable EAP termination on the ClearPass server.

An administrator troubleshoots a roaming problem where a user loses connectivity to the network
during the roaming process. To help troubleshooting this problem, which device or devices in a
wireless network initiates the roaming process?

• A. Both the client and the controller
• B. The AP
• C. The Client
• D. The Controller

An administrator wants to reduce downtime of the wireless network when controllers are upgraded.
Which Aruba OS feature should the administrator implement to reduce the amount of downtime the
Aps will experience at the time of the upgrade process?

• A. Centralized upgrades
• B. AP apboot mode bypass
• C. AP fast start
• D. AP image preload

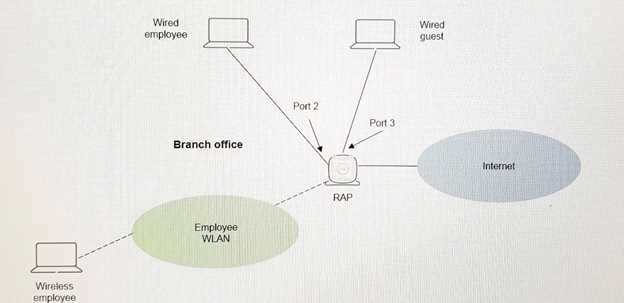

Refer to the exhibit.

The branch office RAP shown in the exhibit provides secure wireless employee access. Because of
security concerns, the company’s security policy does not allow wireless guest access. Some
customers that visit the Branch office need Internet access. A RAP’s Ethernet Port 3 is used for wired
guest access and Port2 is used for wired employee access. When employees connect to Port2, they
are authenticated successfully and split-tunnel policy allows them access to both corporate and
Internet resources from the Branch office. Guest users, however, cannot access Internet resources on
Port 3.
How can the administrator provide guest users Internet access?
A. Implement ClientMatch to handle the employee and guest user traffic correctly.
B. Implement the MultiZone feature on the RAP.
C. Configure a bridge role for the wired RAP port.
D. Create a guest VAP that allows wired RAP port access.
