HP hpe6-a69 practice test

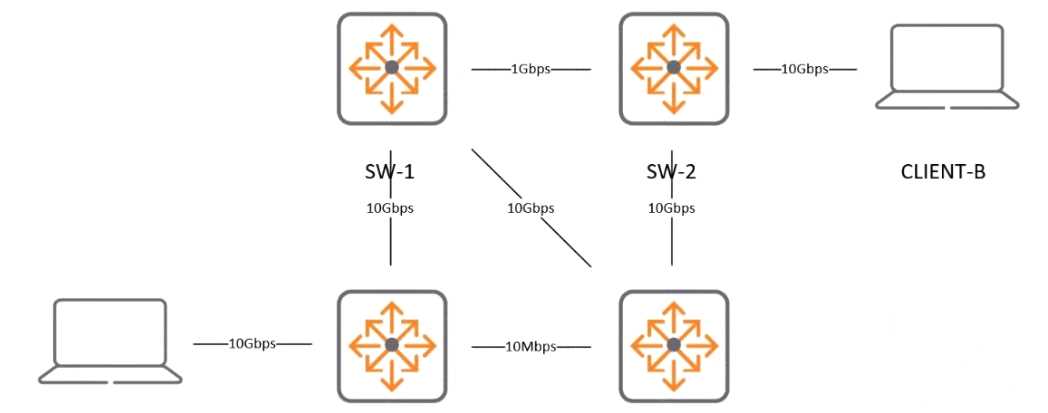

A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

All ports are routed, and ECMP is enabled, with other default parameters for OSPF. What will be the
result of traffic sent from CLIENT-A to CUENT-B?

• A. Traffic will be SW3 -> SW-4 -> SW-2.
• B. Traffic win be SW3 -> SW-1 -> sw-2.
• C. Traffic will be SW3 -> SW-1 -> sw-4 -> SW-2
• D. Traffic will be SW3 -> SW-1 -> Sw-2 & SW3 -> SW-4 -> SW-2

Which statement is true regarding IP-SLA?

• A. ArubaOS-CX supports Doth SLA configuration through CU and by agents through the NAE.
• B. ArubaOS-CX supports forever tests
• C. ArubaOS-CX supports on-demand as well as forever tests.
• D. The default and minimum probe interval for voip SLA is 180 seconds

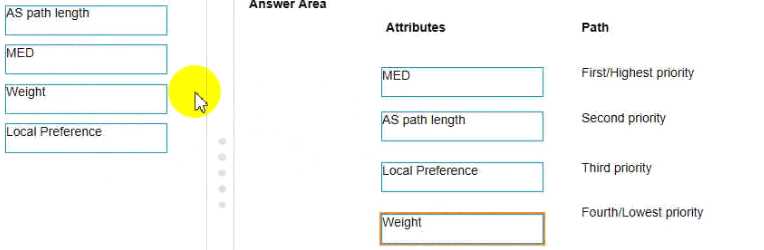

DRAG DROP
Match the BGP path selection criteria attributes (Each option may be used once, more than once, or
not at all)

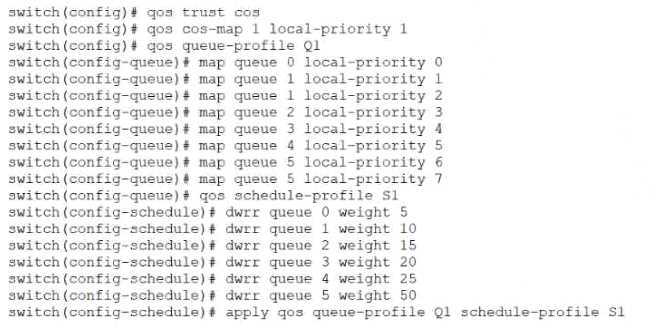

Refer to the exhibit.

Which statement is true?

• A. Q1 and S1 are applied to all interfaces mat do not have a QoS override applied
• B. To be effective, both Q1 and S1 still need to be applied to Interfaces
• C. No default queues are changed
• D. Q1 and S1 are applied to all interfaces.

An administrator warns to create an ACL.
Permit traffic from 192.168.10, 65 through 192.168.10.94
Permit traffic from 192 168 10 104 through 192 16810.119
deny all other ip traffic
Which configuration is required to accomplish the administrator’s goals?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Which statement is true regarding remote mirroring?

• A. The same source/destination address can be used in multiple sessions.
• B. Per session multiple destination addresses can be configured
• C. The ArubaOS-CX switch supports a maximum of two mirroring sessions
• D. When mirroring destination is tunnel, a DSCP value can be set on the tunnel

Which MAC address is valid for use as a VSX System-MAC address?

• A. AB:00:04:00:FF:00
• B. 0A:00:00.00.00
• C. FF:00:00:00:00:00
• D. 01:00:5E40:10.01

Which statement is true about NAE scripts'?

• A. The System Resource Monitor is the only script Installed on the system by default.
• B. The System Resource Monitor and Health Monitor a/e the only scripts installed on the system by default
• C. No script is installed on the system by default.
• D. The Health Monitor is the only script installed on the system by default.

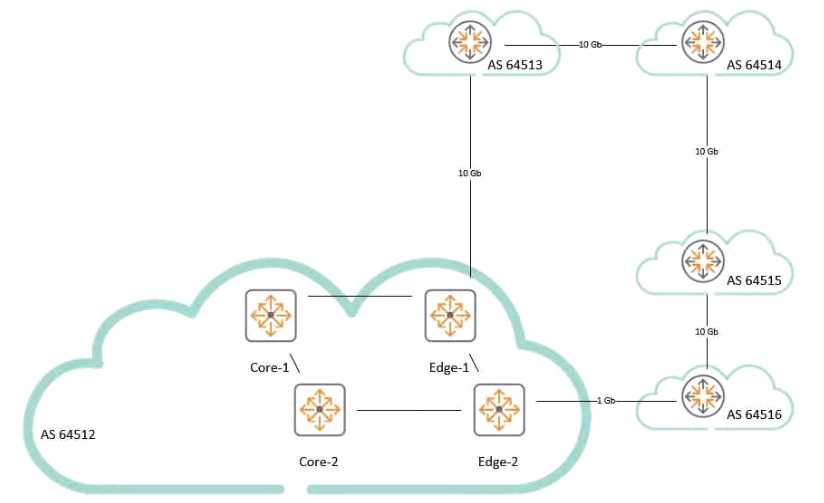

Refer to the exhibit.

Criteria
1. All outbound traffic to AS 64516 prefers Edge-2 to AS 64516
2. All other outbound traffic prefers Edge-1 to AS 64513
Given the customer connectivity depicted in the diagram which single change can be performed on
Edge-2 to ensure the criteria are met?

• A. Configure Edge-2 to set ebgp-multihop 3 for the neighbor for AS 64516.
• B. Configure Edge-2 with a route-map to 'set as-path prepend"' to apply 64516 two times to the neighbor for AS 64516.
• C. Configure Edge-2 to set the local preference for specific routes originating from AS 64516 to 200 and all other routes from AS 64516 to 50
• D. Configure Edge-2 to set the weight on specific routes specific to AS 64516 to 1.

A client connected to Aruba CX 6300 on Port vt/2 Is having issues connecting to a remote destination
10 100 10 62 port 443. How should you get session-specific diagnostic information about this
connection?

• A. Use diag utilities tcpdump desttnation-ip 10 10010.62 to capture the session
• B. Use diag utilities tcpdump destination-prefix 10 100 10.62/32 to capture the session
• C. Run tcpdump -interface "1/1/2" host 10.100 10.62 to capture the session
• D. Enter diag-mode and execute tcpdump ip.addr==10.100.10.62.
