HP hpe6-a66 practice test

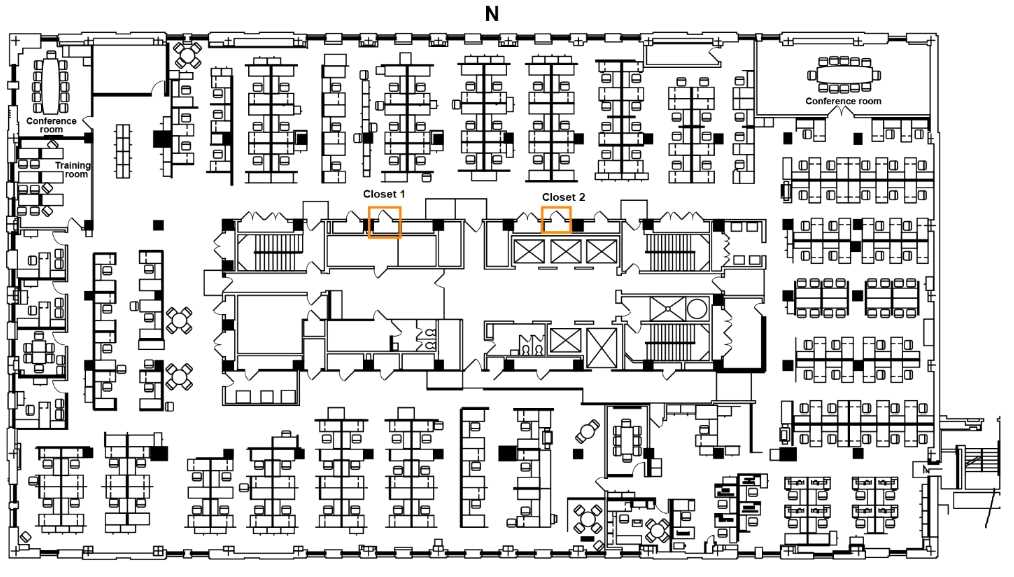

A network architect is given the task to design a new network solution for NewStellar Company, Inc.
NewSteiiar has a main corporate campus in a business park with two adjacent buildings. The
network architect has given one floor to analyze, Building 1 Floor 2, shown in the attached exhibit.

Each building has three floors and each floor is 322 x 175 feet (98 x 53 meters) for 56,350 square feet
(5,235 square meters) total, which results in a total of 338,100 feet (31,410 square meters) for the
entire building space. Each floor has a central main corridor with washrooms, stairs, elevators and
supply and network cabinets. There are cubicles around the perimeter of the floor. The central part
main corridor's dimensions contain 9,350 square feet {870 square meters).
Because of security concerns, video cameras will be installed throughout the facility. There are 16 of
these per floor, 8 per wiring closet. The cameras are non-WiFi capable and require POE 802.3af-
capable switch ports from which to draw power.
A wireless capacity design is required. Assuming that wireless coverage is required across the
Building 1, Floor 2, including the central area, and that half the required APs will connect to each
wiring closet, approximately how many POE+ ports will be required per wiring closet for all devices
that have POE or POE+ needs?

• A. 30
• B. 22
• C. 42
• D. 8

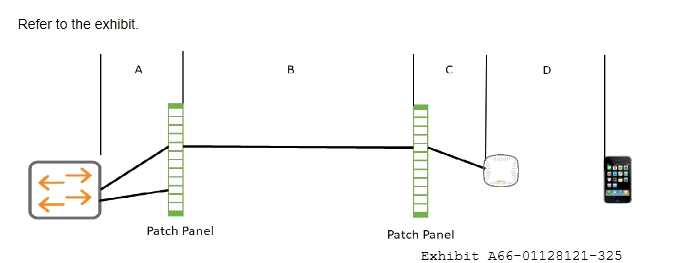

Refer to the exhibit.

When planning the use of Cat7 cabling for a SmartRate connection between an ArubaOS AP and an
ArubaOS switch, which sections should be considered when calculating distance?

• A. A + C
• B. A + B
• C. A + B + C + D
• D. A + B + C

A company is redesigning their wireless network and will be upgrading all devices to support the
latest wireless standards. The company is not near any radar installations. In order to keep wireless
NIC power levels as low as possible to reduce interference issues and to take advantage of radar
frequency ranges, what IEEE standard should APs support?

• A. 802.11r
• B. 802.11 ax
• C. S02.11V
• D. S02.11h

A network architect has created two sites in IRIS and defined network devices for each site. From
which window would a network architect connect the two sites together?

• A. Topology
• B. Site-1
• C. Catalog
• D. Start Page

A network architect is creating a new wired design for a warehouse building. As a best practice, what
length should the architect allow for the service loop in the wiring closets in this environment?

• A. 3-10 feet (1-3 m)
• B. 3 feet (1 m)
• C. 15-30 feet (5-10 m)
• D. 30-60 feet (10-20 m)

A customer requires a campus core virtualization solution that supports a dual control and
management planes, as well as active-active forwarding paths. Which solution would meet the
customer's requirements?

• A. Mesh stacking
• B. VSX
• C. Backplane stacking
• D. VSF

A company has two buildings on a campus that are approximately 700 feet (214 meters) apart with a
clear line of site. No fiber exists between the buildings; however, there is a need for connecting the
networks in the buildings together. The connection between the two buildings will need to support
peak rates over 1 Gbps.
Which solution should the company choose that will meet their requirements as well as being cost-
effective?

• A. Two outdoor AP 367s
• B. Two outdoor AP 387s
• C. Two outdoor AP 510s
• D. Multi-mode fiber between campus switches

A university department has a program in video processing and editing. Students in the department
use Wi-Fi to interact with the video servers. The editing and processing is done by the students
accessing and using the video servers. However, the students must then stream their results, via Wi-
Fi to their laptops to verify the results. A network architect has determined that no more than 20 APs
will be needed for the Wi-Fi solution. Because of the large amount of bandwidth used during the
streaming, the Aruba mobility controller solution will need to support 10 Gbps links.
Which solution would cost-effectively meet this customer's requirements?

• A. 7008
• B. 7205
• C. 7240XM
• D. 7030

A network architect imports a floorplan defined in a PNG file format What is the function of the
measurement tool in Aruba's VisualRF?

• A. Define the appropriate dimensions of each object in a Floorplan View
• B. Define the appropriate dimensions of a Floorplan and Building View
• C. Define the appropriate dimensions of a Floorplan View
• D. Define the appropriate dimensions of each room in a Floorplan View

A company needs an upgrade of its access layer switches. The solution requires that devices
connected to the access layer by authenticated and their traffic processed by the firewall features of
the Aruba Mobility Controllers. Which solution should the company implement?

• A. PAPI mobility
• B. Dynamic segmentation
• C. iPsec tunneling
• D. GRE tunneling
