Question 1
A customer needs NFS access on a fiber channel array.
What must be included in the solution to meet this requirement?
- A. StoreEver
- B. Storage File Controller
- C. Smart Array Controller
- D. StoreOnce RMC
Answer:
B
Explanation:
StoreEver : Tape Library
https://www.hpe.com/us/en/storage/storeever-tape-storage.html
Storage File Controller: HPE Storage File Controllers are the fast and easy way to add High-
Performance file services to the HPE array or SAN
https://support.hpe.com/hpesc/public/docDisplay?docId=a00056212en_us&docLocale=en_US
Smart Array Controller: Physical RAID Controller
https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=emr_na-
a00039156en_us
StoreOnce RMC: HPE Recovery Manager Centeral for backup and recovery
https://www.hpe.com/us/en/storage/rmc-backup.html
Reference:
https://h20195.www2.hpe.com/v2/gethtml.aspx?docname=a00047729enw
Comments
Question 2
DRAG DROP

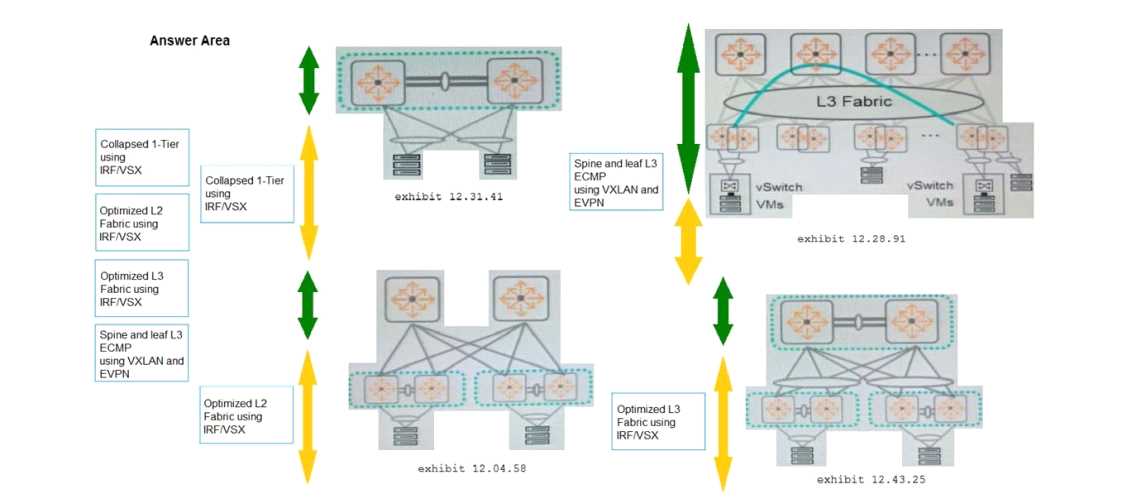

Match each customer data center architecture to its network topology.
Answer:
None
Explanation:
Comments
Question 3
What is the correct cable type to use when connecting a pair of switches using Long Range (LR)
Transceivers?
- A. Direct Attach Cable (DAC)
- B. Twin-Ax
- C. Single Mode Fiber
- D. Multi-mode Fiber
Answer:
C
Explanation:
Explanation:
Single-mode uses a single relatively straight beam of light, transmitted directly through a core of
glass (or occasionally plastic) that's usually 50 microns across. Single-mode accommodates large
power levels, and is almost exclusively used for Long Range (LR) applications.
Reference:
https://info.hummingbirdnetworks.com/blog/answering-your-frequently-asked-
QUESTION
NO:s-about- different-types-of-10-gigabit-cisco-sfp-units
Comments
Question 4
When is it appropriate for a customer to implement HPE OneView Standard?
- A. To manage multiple servers
- B. To monitor their services
- C. To enable the Advanced iLO license
- D. To update firmware
Answer:
B
Explanation:
Reference:
https://h20195.www2.hpe.com/v2/GetPDF.aspx/c04111367.pdf
Comments
Question 5
DRAG DROP

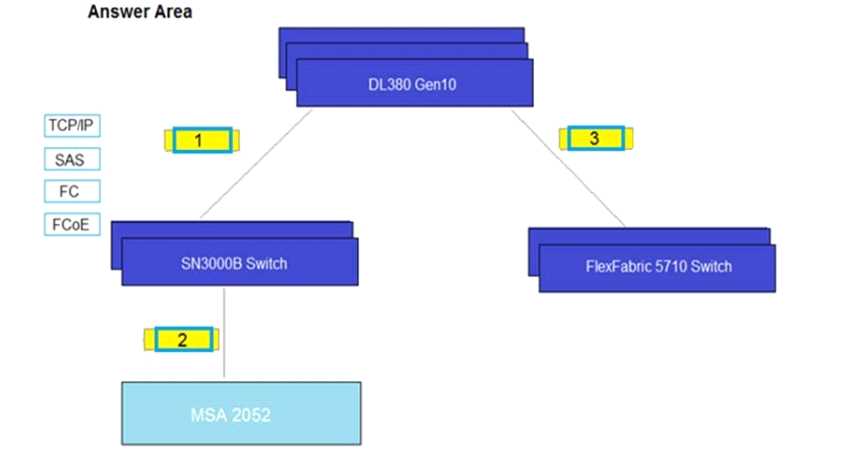

Drag the correct protocols from the left to their appropriate area on the topology.
Answer:
None
Explanation:
1-FC
2-FC
3-TCP/IP
Comments
Question 6
You are creating a configuration for a new Nimble HF40 array.
Which tool should you use to ensure that you include adequate cache in the configuration?
- A. HPE NinjaSTARS
- B. HPE Storage Sizer
- C. HPE OneView
- D. HPE SPOCK
Answer:
A
Explanation:
NinjaSTARS is an interactive storage-sizing tool for HPE's Primera, Nimble, 3PAR and StoreOnce
product
lines.
https://saf.hpe.com/safdesktop/info/findit/index.php
https://community.hpe.com/t5/Array-Performance-and-Data/Nimble-Storage-Sizing-Tool/td-
p/7008101#.YXcCsZpBzr
Comments
Question 7
DRAG DROP

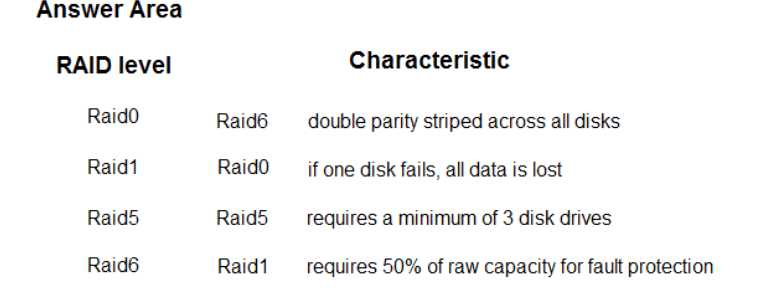

Match each characteristic to the appropriate RAID level.
Answer:
None
Explanation:
Comments
Question 8
A customer needs a single, dual-processor server for an Enterprise Resource Planning solution for a
single office. The customer application uses a mix of HDDs and SSDs and up to 3TB of RAM.
Which HPE Solution should you propose?
- A. HPE Synergy Solution
- B. HPE Apollo 2000 Server
- C. HPE ML350 Gen10
- D. HPE ML110 Gen10
Answer:
C
Explanation:
Reference:
https://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA0-8758ENW.pdf
Comments
Question 9
What should you configure to limit the scope of broadcast domains in an Ethernet network?
- A. Trunks
- B. VSAN
- C. Static ARP
- D. VLAN
Answer:
D
Explanation:
Reference:
https://assets.ext.hpe.com/is/content/hpedam/documents/a00069000-
9999/a00069468/
a00069468enw.pdf
Comments
Question 10
What is an access port on an Ethernet switch?
- A. A port that carries FCP frames inside the network
- B. A port that carries multiple VLANs
- C. A port that is connected to an FCF
- D. A port that carries untagged frames inside the network
Answer:
D
Explanation:
Reference:
https://support.hpe.com/hpesc/public/docDisplay?docId=mmr_kc-0102233
Comments
