Fortinet nse5-fmg-7-2 practice test

Refer to the exhibit.



What is the purpose of setting ADOM Mode to Advanced?

• A. This setting enables the ADOMs feature on FortiManager.
• B. This setting allows you to manage FortiGate chassis models.
• C. This setting disables concurrent ADOM access and adds ADOM locking.
• D. This setting allows you to assign a VDOM from a single device to a different ADOM.

What will happen if FortiAnalyzer features are enabled on FortiManager?

• A. FortiManager will keep all the logs and reports on the FortiManager.
• B. FortiManager will install the logging configuration to the managed devices.
• C. FortiManager can be used only as a logging device.
• D. FortiManager will enable ADOMs to collect logs automatically from non-FortiGate devices.

In the event that one of the secondary FortiManager devices fails, which action must be performed to return the FortiManager HA manual mode to a working state?

• A. The FortiManager HA state transition is transparent to administrators and does not require any reconfiguration.
• B. Manually promote one of the working secondary devices to the primary role, and reboot the old primary device to remove the peer IP of the failed device.
• C. Reconfigure the primary device to remove the peer IP of the failed device.
• D. Reboot the failed device to remove its IP from the primary device.

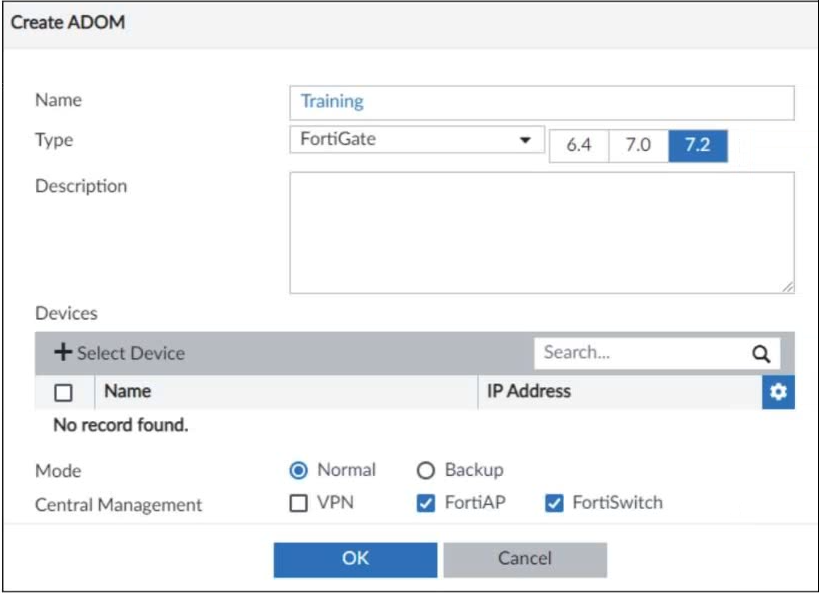

Refer to the exhibit.



Which two statements about an ADOM set in Normal mode on FortiManager are true? (Choose two.)

• A. It supports the FortiManager script feature.
• B. FortiManager automatically installs the configuration difference in revisions on the managed FortiGate.
• C. It allows making configuration changes for managed devices on FortiManager panes.
• D. You cannot assign the same ADOM to multiple administrators.

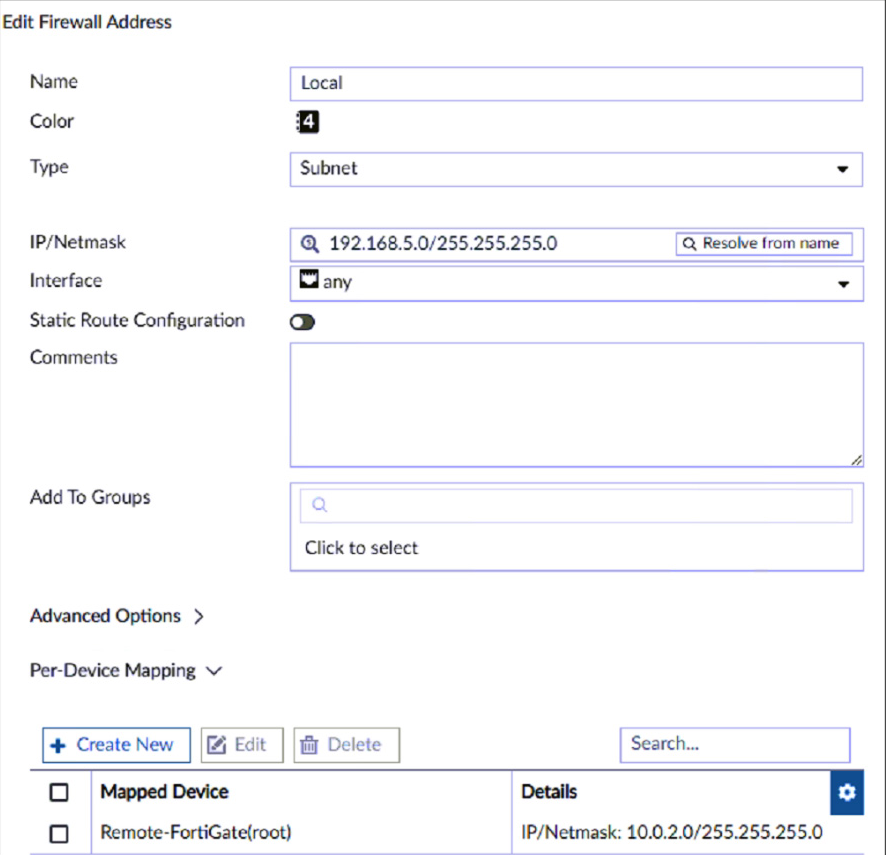

Refer to the exhibit.

An administrator has created a firewall address object, Local, which is used in the Remote-FortiGate policy package.
When the installation operation is performed, which IP/Netmask will be installed on Remote-FortiGate, for the Local firewall address object?

• A. 192.168.5.0/24
• B. Remote-FortiGate will automatically choose an IP/netmask based on its network interface settings.
• C. 10.0.2.0/24
• D. It will create the Local and Remote-Local firewall address objects on Remote-FortiGate with 192.168.5.0/24 and 10.0.2.0/24 values.

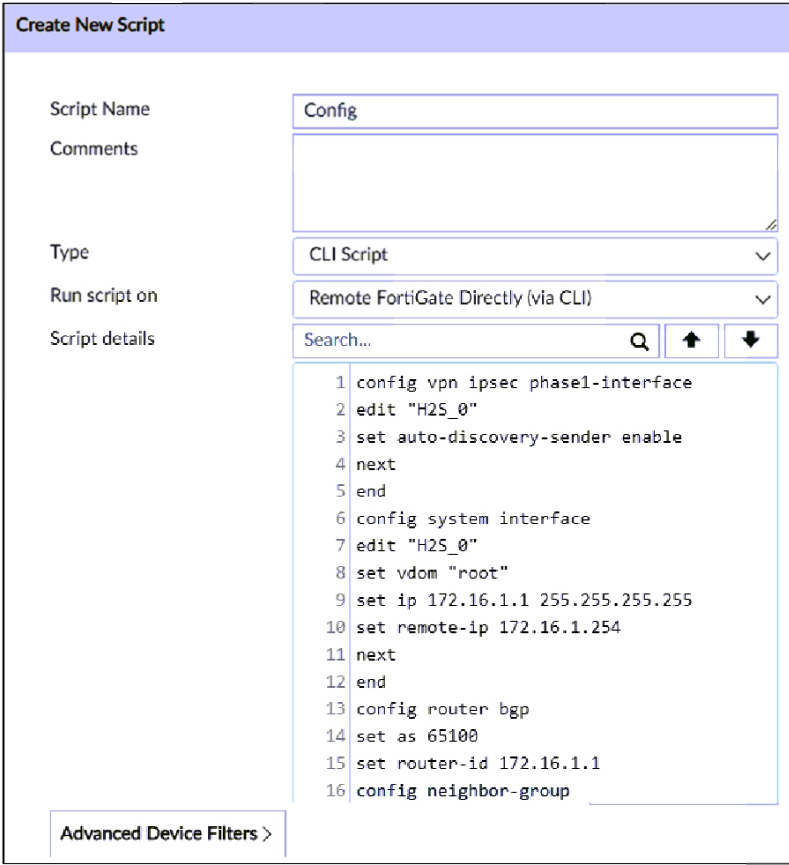

Refer to the exhibit.

What will happen if the script is run using the Remote FortiGate Directly (via CLI) option? (Choose two.)

• A. FortiManager provides a preview of CLI commands before executing this script on a managed FortiGate.
• B. FortiManager will create a new revision history.
• C. FortiGate will auto-update the FortiManager device-level database.
• D. You must install these changes using the Install Wizard.

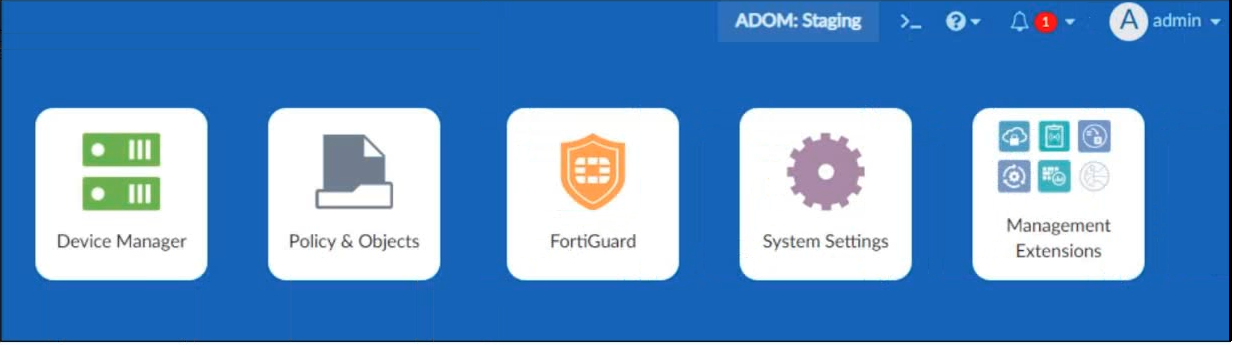

Refer to the exhibit.



An administrator wants to create a policy on the Staging ADOM in backup mode, and install it on the FortiGate device in the same ADOM.

How can the administrator perform this task?

• A. The administrator must change the ADOM mode to Advanced to bring the FortiManager online.
• B. The administrator must disable the FortiManager offline mode first.
• C. The administrator must use the Policy & Objects section to create a policy first.
• D. The administrator must use the FortiManager script.

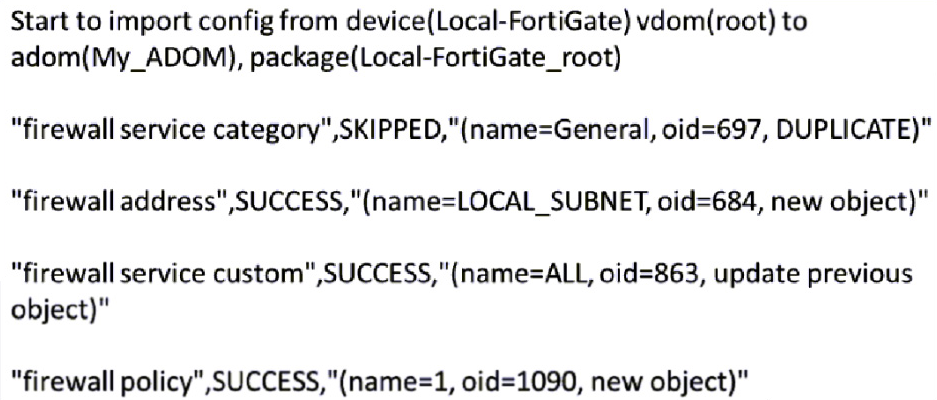

Refer to the exhibit.

Given the configuration shown in the exhibit, how did FortiManager handle the service category named General?

• A. FortiManager ignored the firewall service category General and updated the FortiGate duplicate value in the FortiGate database.
• B. FortiManager ignored the firewall service category General and did not update its database with the value.
• C. FortiManager ignored the firewall service category General but created a new service category in its database.
• D. FortiManager ignored the firewall service category General and deleted the duplicate value in its database.

Which two conditions trigger FortiManager to create a new revision history? (Choose two.)

• A. When FortiManager is auto-updated with configuration changes made directly on a managed device
• B. When changes to the device-level database are made on FortiManager
• C. When FortiManager installs device-level changes on a managed device
• D. When a configuration revision is reverted to a previous revision in the revision history

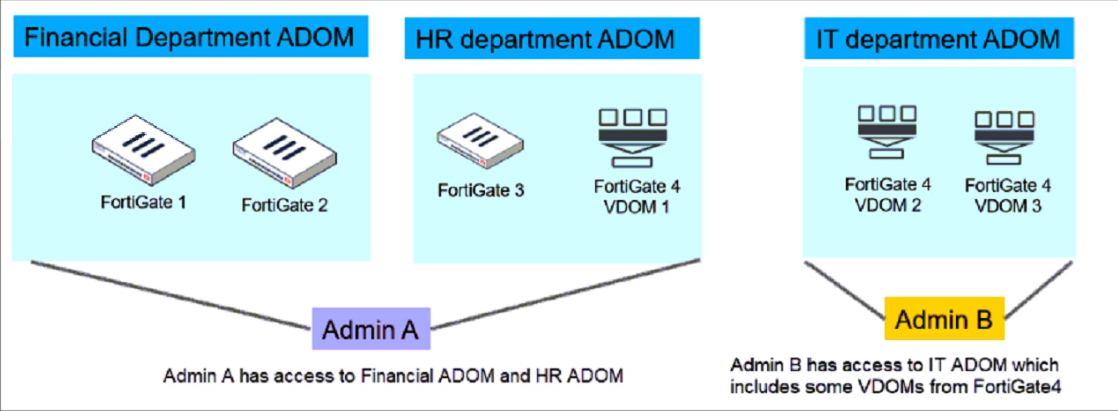

Refer to the exhibit.

An administrator would like to create three ADOMs on FortiManager with different access levels based on departments.
What two conclusions can you draw from the design shown in the exhibit? (Choose two.)

• A. Admin A can access VDOM2 and VDOM3 with the super user profile.
• B. The FortiManager policies and objects database can be shared between the Financial and HR ADOMs.
• C. The administrator must set the FortiManager ADOM mode to Advanced.
• D. The administrator must configure FortiManager in workspace mode.
