Fortinet fcp fwf ad 7 4 practice test

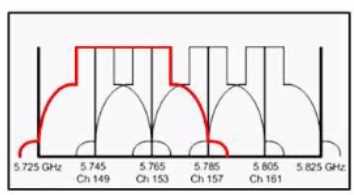

Refer to the exhibit.

What does the red line represent?

• A. Practical channel bonding to increase high throughput
• B. A pool of channels for the wireless radio to broadcast the wireless signal.
• C. The range of channels used to allocate available airtime while transmitting data
• D. The total length of the wireless signal wavelength

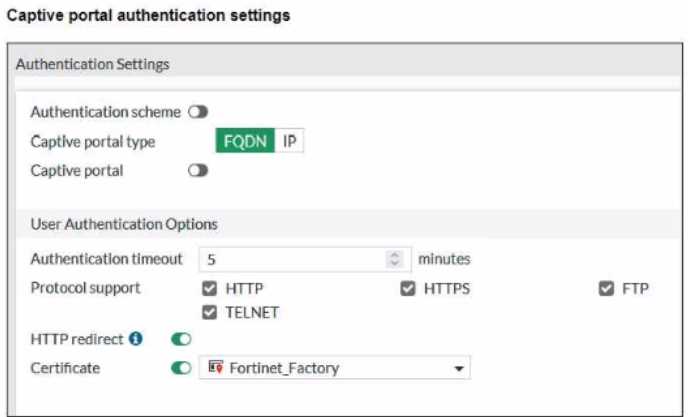

Refer to the exhibits.

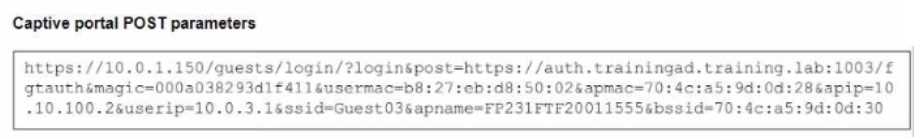

FortiGate is pushing the POST parameters shown in the exhibit to the external captive portal server
The wireless client redirection fails because certificate validation occurred while loading the web
page
The wireless client browser uses the FortiGate self-signed certificate to access secured web pages
The SSID on FortiGate has the captive portal setting
What could cause the certification validation error on the wireless client?

• A. The FortiGate IP address in the POST parameters is using a numerical IP address
• B. The external server address is not the FQDN address
• C. The used credential is not embedded in the captive portal parameters
• D. The captive portal setting in the authentication setting is set to use FQDN as the captive portal type

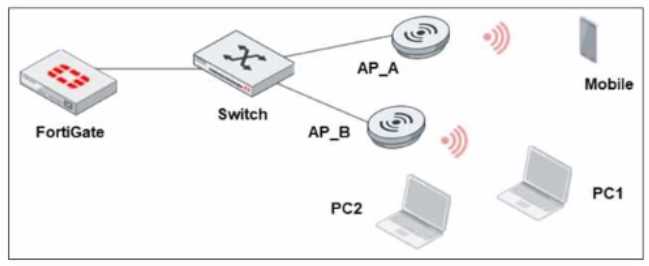

Refer to the exhibit.

A new security policy is made by the IT department to prevent direct communication between
wireless stations There is one SSID configured in bridge mode Which statement is correct as a plan of
action to update the wireless network configuration?

• A. Create unique SSIDs for each FortiAP device
• B. Add an upstream layer 3 device on each FortiAP device
• C. Block intra-SSID traffic on the wireless network
• D. Drop all local traffic in the wireless network

Refer to the exhibits.

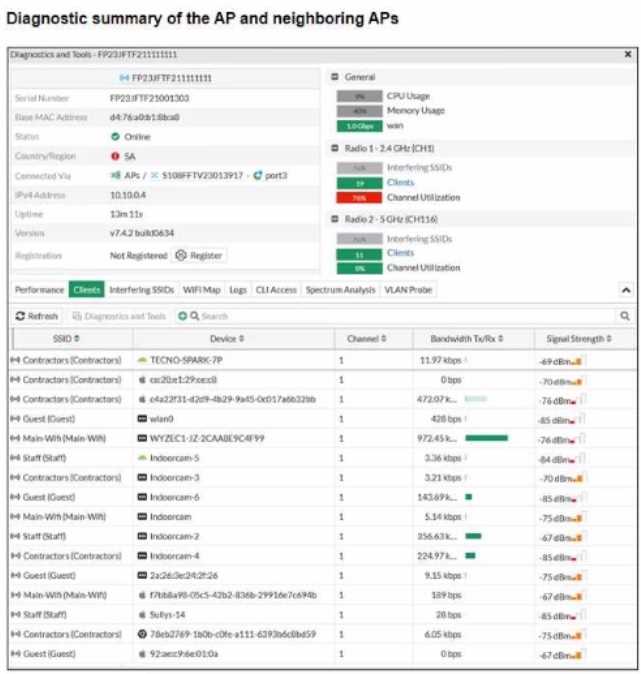

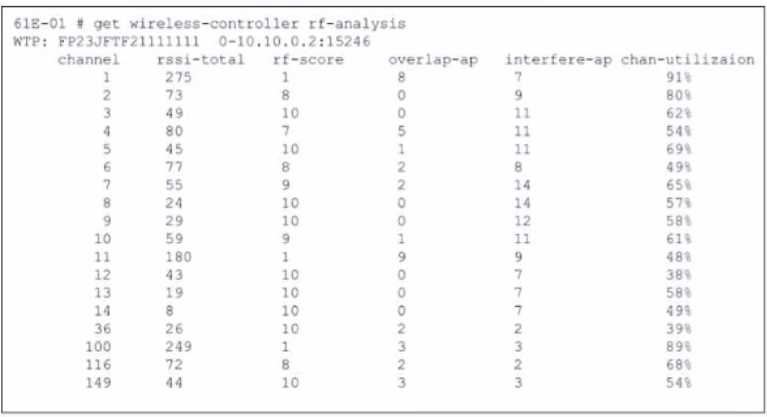

The exhibits show the AP profile the controller RF analysis output and a diagnostic summary of the
AP and neighboring APs
The wireless network is used for multiple purposes including corporate access guest access and
connecting point-of-sale and loT devices Users connecting to the guest network located in the
reception area are reporting stow performance
Which configuration change is most likely to improve performance?

• A. Reduce the number of SSlDs being broadcast by the reception AP
• B. Enable frequency handoff on the AP to band steer clients
• C. increase the transmission power of the AP radios
• D. install another AP in the reception area to improve available bandwidth.

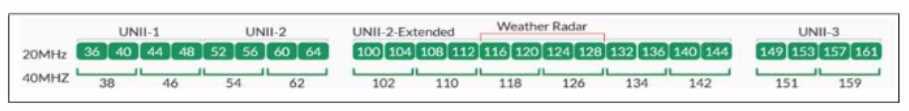

Refer to the exhibit.

Which statement is correct about channels 52 through 144 in the 5 GHz band?

• A. The channels will be scanned by the wireless intrusion detection system (WIDS)
• B. The channels cannot be used because of regulatory channel restrictions
• C. The channels can be used only when Radio Resource Provisioning is enabled
• D. The channels are subject to dynamic frequency selection (DPS) regulations

Which wireless monitoring metric is required to optimize a wireless network?

• A. FortiAP running firmware status
• B. Amount of event togs generated
• C. Users count on the network
• D. Wireless channel utilization

Which security solution can you implement in the Security Fabric to identify and prevent threats?

• A. Integrated wireless network access
• B. Endpoint detection and response
• C. Compromised wireless client quarantine
• D. Indicator of attack system

What protection does WPA3 wireless encryption provide over WPA2 for securing wireless networks?

• A. WPA3 uses 128-bit session key size
• B. WPA3 enforces only enterprise security mode
• C. WPA3 addresses the KRACK vulnerability
• D. WPA3 prevents legacy and deprecated wireless protocols from being used

What is the relationship between wireless channels and data transmission?

• A. The wider the channel the more data it can carry
• B. Data is transmitted over only one wireless channel at a time
• C. The more wireless channels, the more power consumption is required
• D. A wireless channel is allocated to transmit data unidirectionally

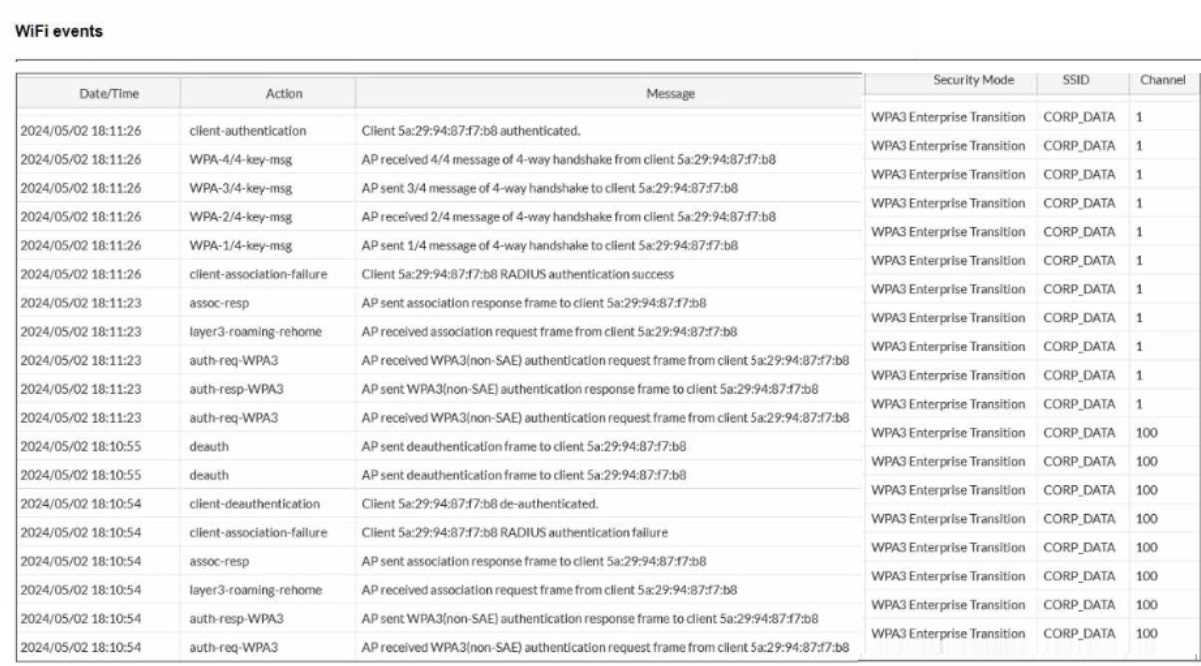

Refer to the exhibit.

The wireless station with MAC address 5a:29:94:87:f7:b8 has made multiple attempts to connect to
the CORP.DATA SSID Despite client-association-failure event logs the wireless station connects on the
final attempt
Why did the wireless station fail to connect initially?

• A. The wireless station connected to SSID but failed RADIUS authentication
• B. The wireless controller unauthenticated the wireless station to prevent evil twin attacks
• C. The wireless station was incompatible with the 5 GHz radio band.
• D. The wireless station used invalid credentials on the failed attempt
