f5 201 practice test

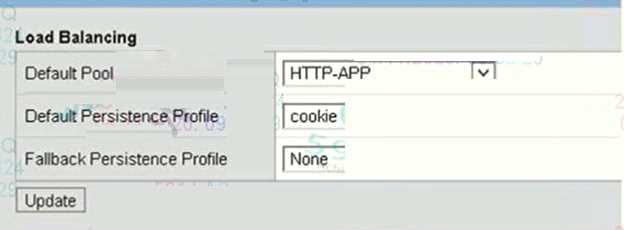

Refer to the exhibit.

Due to a change in application requirements, a BIG-IP Administrator needs to modify the
configuration of a Virtual Server to include a Fallback Persistence Profile.
Which persistence profile type should the BIG-IP Administrator use for this purpose?

• A. SSL
• B. Hash
• C. Universal
• D. Source Address Affinity

A BIG-IP device sends out the following SNMP trap:
big-ipo.f5.com - bigipExternalLinkChange Link: 1.0 is DOWN
Where in the BIG-IP Configuration utility should the BIG-IP Administrator verify the current status of
Link
1.0?
A. System > Platform
B. Network > Trunks > Trunk List
C. Statistics > Performance > System
D. Network > Interfaces > Interface List

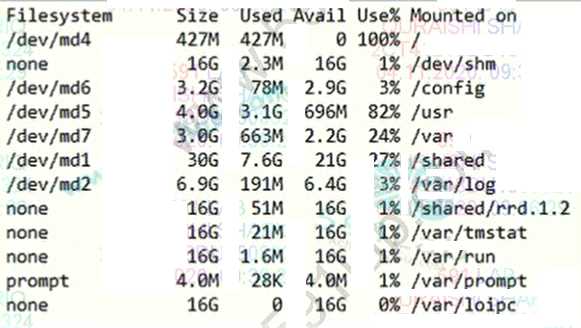

Refer to the exhibit.

The BIG-IP Administrator is investigating disk utilization on the BIG-IP device.
What should the BIG-IP Administrator check next?

• A. Large files on the / file system
• B. Results from the EUD test
• C. Results from the platform diagnostics test
• D. Large files on /usr file system

Which Virtual Server type prevents the use of a default pool?

• A. Performance (Layer 4)
• B. Forwarding (IP)
• C. Performance HTTP
• D. Standard

A BIG-IP Administrator needs to view the CPU utilization of a particular Virtual Server. Which section
of the Configuration Utility should the administrator use for this purpose?

• A. Statistics > Module Statistics > Local Traffic > Virtual Addresses
• B. Statistics > Module Statistics > Traffic Summary
• C. Statistics > Analytics > Process CPU Utilization
• D. Statistics > Module Statistics > Local Traffic > Virtual Servers

A BIG-IP Administrator is setting up a new BIG-IP device. The network administrator reports that the
interface has an incompatible media speed. The BIG-IP Administrator needs to change this setting
manually.
From which location should the BIG-IP Administrator perform this task?

• A. On the Front Console
• B. In the TMOS Shell Command line
• C. In the Configuration Utility, Network > Interface
• D. In the Configuration Utility, System > Configuration

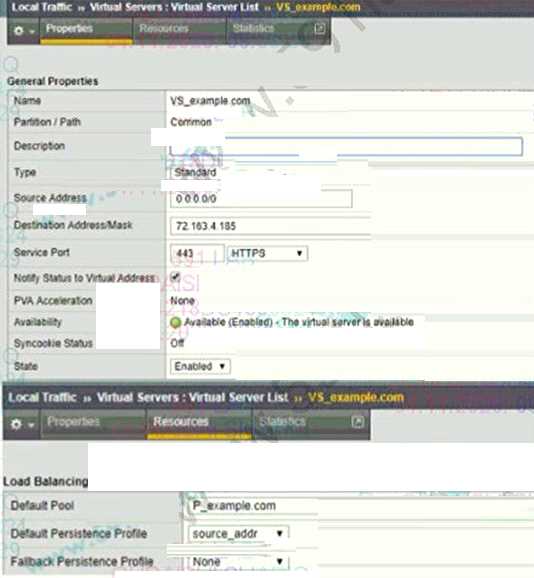

Refer to the exhibit.

An organization is reporting slow performance accessing their Intranet website, hosted in a public
cloud. All employees use a single Proxy Server with the public IP of 104.219.110.168 to connect to
the Internet. What should the BIG-IP Administrator of the Intranet website do to fix this issue?

• A. Change Source Address to 104.219.110.168/32
• B. Change Load Balancing Method to Least Connection
• C. Change Fallback Persistence Profile to source_addr
• D. Change Default Persistence Profile to cookie

A local user account (Users) on the BIG-IP device is assigned the User Manager role. Userl attempts
to
modify the properties of another account (User2), but the action fails. The BIG-IP Administrator can
successfully modify the User2 account.
Assuming the principle of least privilege, what is the correct way to allow User 1 to modify User2
properties?

• A. Move User2 to the same partition as User1
• B. Move User to the same partition as User2.
• C. Modify the partition access for User 1

A BIG-IP Administrator creates an HTTP Virtual Server using an iApp template. After the Virtual
Server is
created, the user requests to change the destination IP addresses. The BIG-IP Administrator tries to
change the destination IP address from 10.1.1.1 to 10.2.1.1 in Virtual Server settings, but receives
the
following error:
The application service must be updated using an application management interface
What is causing this error?

• A. The Application Service was NOT deleted before making the IP address change.
• B. The IP addresses are already in use.
• C. The Application Services have Strict Updates enabled.
• D. The IP addresses used are NOT from the same subnet as the Self IP.

A BIG-IP Administrator is informed that traffic on Interface 1.1 is expected to increase over the
maximum bandwidth capacity on the link. There is a single VLAN on the Interface. What should the
8IG-IP Administrator do to increase the total available bandwidth?

• A. Assign two Interfaces to the VLAN
• B. Set the media speed of Interface 1.1 manually
• C. Create a trunk object with two Interfaces
• D. Increase the MTU on the VLAN using Interface 1.1
