dell d-nwg-fn-23 practice test

Using the MAC 8c-ec-4b-5b-61-9d, what is a valid EUI-64 link local address?

• A. 2001::a9:8eec:4bff:fc5b:619d
• B. fe80::a9:8cec:4bff:fe5b:619d
• C. ff80:a9:8eec:4bff:fe5b:619d
• D. fe80::a9:8eec:4bff:fe5b:619d

A network administrator is designing a Layer 2 topology and requires separate spanning-tree roots to
avoid having a given port blocked for all instances. Which spanning-tree protocols will meet this
need?

• A. STP & RSTP
• B. RSTP-PV & MSTP
• C. STP & RSTP-PV
• D. RSTP & MSTP

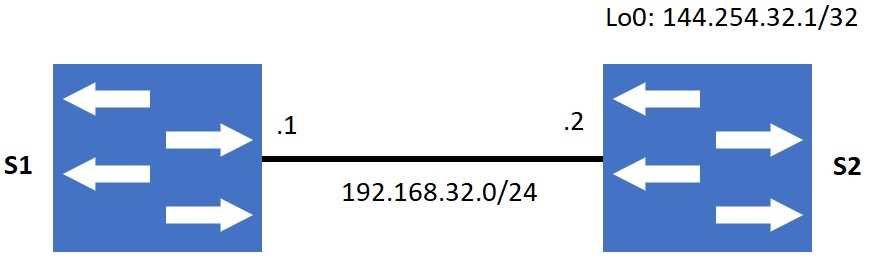

Refer to the exhibit.

Which configuration will allow S1 to ping S2’s Lo0 address?

• A. S1(config-router)# ip route 144.254.32.1 192.168.32.2/32
• B. S1(config-router)# ip route 192.168.32.2 144.254.32.1/32
• C. S1(config)# ip route 144.254.32.1/32 192.168.32.2
• D. S1(config)# ip route 192.168.32.2 144.254.32.1/32

The network administrator wants to configure RADIUS authentication for VTY access, and for console
access to use the local configuration. Which two commands should be used to achieve this goal?

• A. aaa authentication login vty group radius aaa authentication login console local
• B. aaa authentication login default group radius aaa authentication login console local
• C. aaa authentication login vty radius aaa authentication login console group local
• D. aaa authentication login default group radius aaa authentication login console group local

There is a spanning tree mismatch at the global level. PVST+ is configured on a VLT peer. All VLT port
channels go down on both VLT peers. A syslog error message is generated. What is the correct action
to resolve the issue?

• A. Verify the VLT LAG ID is configured correctly on both VLT peers.
• B. Enable RSTP on both VLT peers.
• C. Use the show VLT detail and show VLT brief commands to view the VLT port channel status information.
• D. Perform a mismatch check after the VLT peer is established.

When using Policy Based Routing what is a valid matching criterion?

• A. 802.1Q VLAN ID
• B. Destination TCP port number
• C. AAA security credentials
• D. Source hostname

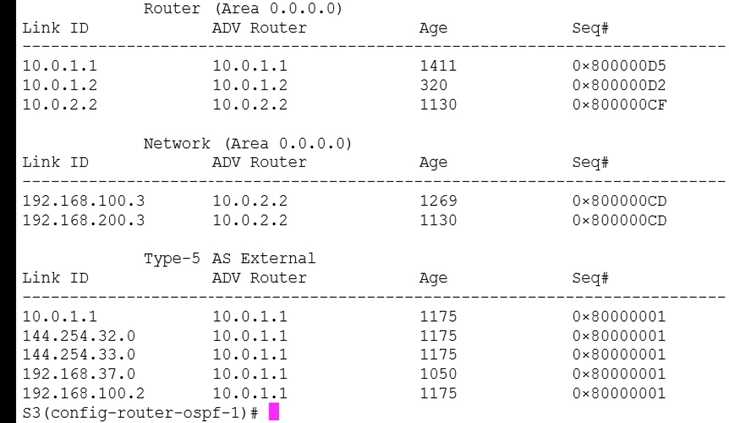

Refer to the exhibit.

The output shown is from which command?

• A. S3(config-router-ospf-1)# show ip ospf database
• B. S3(config-router-ospf-1)# show ip ospf topology
• C. S3(config-router-ospf-1)# show ip ospf lsa
• D. S3(config-router-ospf-1)# show ip ospf statistics

What are the correct steps to configure a static LAG on a Dell Networking OS10 switch?

• A. interface port-channel 4 channel-group 4 mode passive interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on
• B. interface port-channel 4 channel-group 4 mode on interface range ethernet 1/1/14-1/1/15 channel-group 4 mode passive
• C. interface port-channel 4 no shutdown interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on
• D. interface port-channel 4 no shutdown interface range ethernet 1/1/14-1/1/15 channel-group 4 mode active

What is the size of the VLAN tag in an Ethernet frame?

• A. 4 bytes
• B. 8 bytes
• C. 1 byte
• D. 2 bytes

When the show ip bgp neighbors command is issued, which BGP state reflects a successfully created
adjacency with another BGP peer?

• A. ESTABLISHED
• B. PEERING
• C. ACTIVE
• D. CONNECTED
