cisco 400-101 practice test

What are three valid HSRP states? (Choose three.)

• A. listen
• B. learning
• C. full
• D. established
• E. speak
• F. INIT

External EIGRP route exchange on routers R1 and R2 was failing because the routers had duplicate
router IDs. You changed the eigrp router-id command on R1, but the problem persists. With
additional action must you take to enable the routers to exchange routes?

• A. Change the corresponding loopback address.
• B. Change the router ID on R2.
• C. Reset the EIGRP neighbor relationship.
• D. Clear the EIGRP process.

Which two statement about the EIGRP Over the Top feature are true? (Choose two.)

• A. EIGRP routers traffic between the PE devices.
• B. Traffic is LISP-encapsulated on the control plan
• C. The neighbor command must be configured with USP encapsulation on each CE device
• D. The network statement must be configured on each PE device to connect separate EIGRP sites.
• E. Traffic is LISP-encapsulated on the data plan

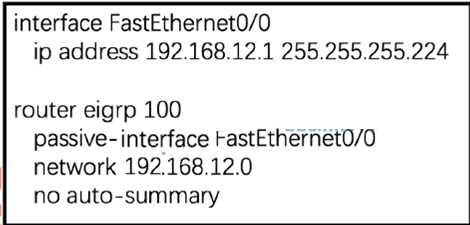

Refer to the exhibit.

What are two effects of the given configuration? (Choose two.)

• A. The router will fail to form neighbor adjacencies over all EIGRP interfaces except F0/0
• B. The router will fail to form neighbor adjacencies over interfaces F0/0
• C. The router will manually summarize the 192.168.12.0127 network
• D. The router will install the 192.168.12.0/27 network into its EIGRP topology table
• E. Auto-summarization will be enabled to the FO/O interface

Which two statements about 1Pv6 6to4 tunnels are true? (Choose two)

• A. Sites use addresses from the 2002::/16 prefix
• B. Sites use addresses from link-local scope
• C. They are point-to-multipoint tunnels
• D. They are point-to-point tunnels
• E. They rely on GRE encapsulation

What is the source MAC address of a BPDU frame that is sent out of a port?

• A. the lowest MAC address on the switch
• B. the highest MAC address on the switch
• C. the MAC address of the individual port that is sending the BPDU
• D. the same as the MAC address in the bridge ID

What command can you enter to configure NBAR to recognize VNC traffic?

• A. ip nbar port-map VNC hex OxAA Ox1B
• B. ip nbar custom-map VNC tcp-udp 5900 5901
• C. ip nbar port-to-application seq 5 VNC tcp 5900 5901
• D. ip nbar application-map VNC udp 5900 5901
• E. ip nbar port-map VNC tcp 5900 5901

Refer to the exhibit.

If the route to 10.1.1.1 is removed from the R2 routing table, which server becomes the master NTP
server?

• A. R2
• B. the NTP server at 10.3.3.3
• C. the NTP server at 10.4 .4.4
• D. the NTP server with the lowest stratum number

How many address families can a single OSPFv3 instance support?

• A. 1
• B. 2
• C. 5
• D. 10

Which two items must be confined to capture packet data with the Embedded Packet Capture
feature? (Choose two)

• A. the capture point
• B. the capture buffer
• C. the capture file export location
• D. the capture filter
• E. the capture rate
• F. the buffer memory size
