cisco 300-430 practice test

An organization is supporting remote workers in different locations. In order to provide wireless
network connectivity and services, OfficeExtend has
been implemented. The wireless connectivity
is working, but users report losing connectivity to their local network printers. Which solution must
be used to address this issue?

• A. OEAP gateway override
• B. OEAP split tunnel
• C. WLAN static IP tunneling
• D. FlexConnect local switching

What is configured to use more than one port on the OEAP to extend the wired network?

• A. remote LAN ACL
• B. AAA override
• C. client load balancing
• D. remote LAN

An engineer must implement Cisco Identity-Based Networking Services at a remote site using ISE to
dynamically assign groups of users to specific IP subnets. If the subnet assigned to a client is available
at the remote site, then traffic must be offloaded locally, and subnets are unavailable at the
remote site must be tunneled back to the WLC. Which feature meets these requirements?

• A. learn client IP address
• B. FlexConnect local authentication
• C. VLAN-based central switching
• D. central DHCP processing

An engineer must configure Cisco OEAPs for three executives. As soon as the NAT address is
configured on the management interface, it is noticed that the WLC is not responding for APs that
are trying to associate to the internal IP management address. Which command should be used to
reconcile this?

• A. config flexconnect office-extend nat-ip-only disable
• B. config network ap-discovery nap-ip-only enable
• C. config flexconnect office-extend nat-ip-only enable
• D. config network ap-discovery nat-ip-only disable

An engineer is responsible for a wireless network for an enterprise. The enterprise has distributed
offices around the globe, and all APs are configured in FlexConnect mode. The network must be
configured to support 802.11r and CCKM. What needs to be implemented to accomplish this goal?

• A. Enable VLAN-based central switching.
• B. Enable FlexConnect local authentication.
• C. Enable FlexConnect local switching.
• D. Create FlexConnect groups.

A corporation has employees working from their homes. A wireless engineer must connect 1810
OEAP at remote teleworker locations. All configuration has been completed on the controller side,
but the network readiness is pending. Which two configurations must be performed on the firewall
to allow the AP to join the controller? (Choose two.)

• A. Block UDP ports 1812 and 1813 on the firewall.
• B. Enable NAT Address on the 5520 with an Internet-routable IP address.
• C. Configure a static IP on the OEAP 1810.
• D. Allow UDP ports 5246 and UDP port 5247 on the firewall.
• E. Allow UDP ports 12222 and 12223 on the firewall.

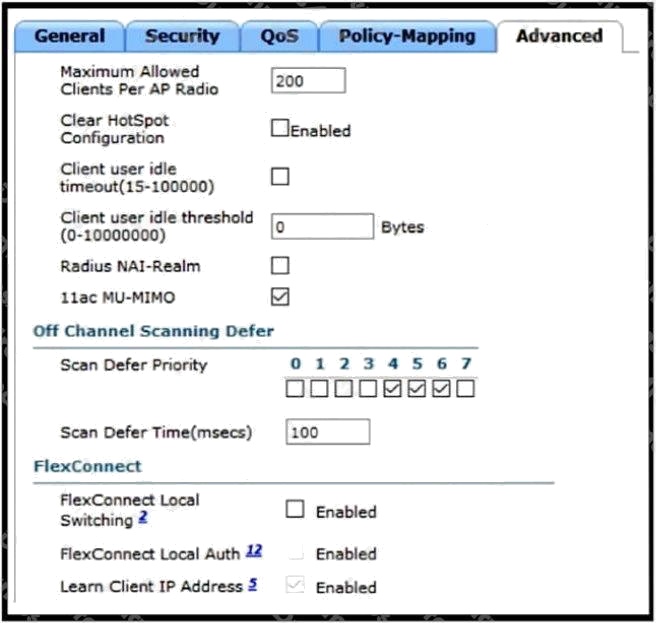

An enterprise has two WLANs configured on WLC. It is reported that when converting APs to
FlexConnect mode, WLAN A works but WLAN B does not. When converting APs to local mode, WLAN
B works, but WLAN A does not. Which action is needed to complete this configuration?

• A. Create a Cisco FlexConnect group with WLAN-VLAN mapping.
• B. Disable local switching on the WLANs.
• C. Map the AP group to the WLAN interface.
• D. Join the APs to a Cisco FlexConnect group.

An engineer wants the wireless voice traffic class of service to be used to determine the queue order
for packets received, and then have the differentiated services code point set to match when it is
resent to another port on the switch. Which configuration is required in the network?

• A. Platinum QoS configured on the WLAN
• B. WMM set to required on the WLAN
• C. msl qos trust dscp configured on the controller switch port
• D. msl qos trust cos configured on the controller switch port

When using a Cisco Catalyst 9800 Series Wireless Controller, which statement about AutoQoS is
true?

• A. It has a set of predefined profiles that you cannot modify further
• B. It matches traffic and assigns each matched packet to QoS groups
• C. It automates deployment of wired QoS and makes wireless QoS implementation easier
• D. It allows the output policy map to put specific QoS queues into specific subgroups

A network engineer is deploying 8865 IP phones with wireless clients connected to them. In order to
apply the appropriate QoS, the IP voice traffic needs to be distinguished from client data traffic.
Which switch configuration feature must be enabled?

• A. Voice VLAN
• B. QBSS
• C. WME
• D. QoS routing
