bicsi rcddv14-1 practice test

One interior TTY must be provided at locations defined as public accommodations with ________ or
more pay telephones.

• A. One
• B. Two
• C. Four
• D. Six
• E. Eight

In an office area, a consultant needs to add the location of a fax machine to the plan. What is the
approximated floor area that a fax machine occupies?

• A. 0.2 sq m (2 sq ft)
• B. 0.5 sq m (5 sq ft)
• C. 1 sq m (10 sq ft)
• D. 1.5 sq m (16 sq ft)
• E. 2 sq m (20 sq ft)

What is the MINIMUM distance from the edge of a pool or other water hazards for a weatherproof
enclosure?

• A. 1 m (3 ft)
• B. 2 m (7 ft)
• C. 4 m (13 ft)
• D. 6 m (20 ft)
• E. 10 m (30 ft)

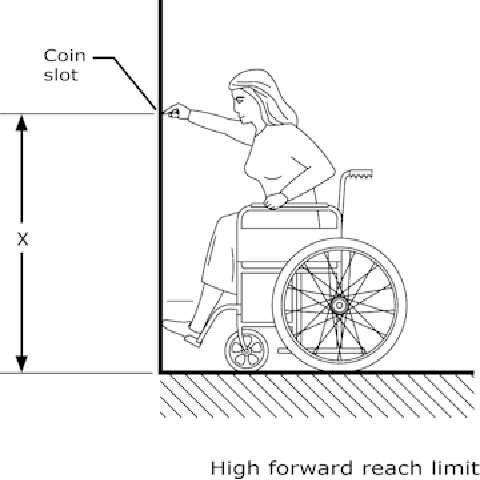

Exhibit:

A pay telephone using coins needs to be installed in a public are
a. In the specifications, it is required that the telephone shall meet the ADA (American with
Disabilities Act) requirement for front reach using a wheelchair. What will be the maximum
reachable height or the value of "X"?

• A. 760 mm (30 in)
• B. 864 mm (34 in)
• C. 1170 mm (46 in)
• D. 1220 mm (48 in)
• E. 1370 mm (54 in)

You are designing distribution for a seven unit townhouse with in slab conduits. What is the
MINIMUM number of 27 mm (1 in) rigid PVC Type 2 or metallic conduit that is required to satisfy
distribution to each unit?

• A. Three
• B. Four
• C. Five
• D. Seven
• E. Fourteen

You have just finished a design calling for 15 telecommunications outlets. You received word that the
owner has increased his requirements by 40%. What size commercial DD (distribution device) is
required to accommodate the increase?

• A. 660 mm (26 in)
• B. 1015 mm (40 in)
• C. 1346 mm (53 in)
• D. 1676 mm (66 in)

Which service is NOT typical of Grade 1?

• A. Telephone
• B. Multimedia
• C. Data
• D. Television

You are designing a multi-story dwelling and need to place the CTR's. Every floor is not available.
What is the alternate spacing for the CTRs?

• A. Every 2 floors
• B. Every 3 floors
• C. Every 4 floors
• D. Every 5 floors
• E. 1st floor and midway up through the height of the building

You are designing a system requiring the transmission of dat
a. Your system must perform higher than ________ kHz in order to do so.

• A. 4
• B. 8
• C. 10
• D. 16
• E. 32

To accommodate telephone, data, CATV, security and multimedia, a MINIMUM of ________ strands
of optical fiber auxiliary disconnect outlet (ADO) cable should be provided.

• A. Two
• B. Four
• C. Five
• D. Six
• E. Eight
